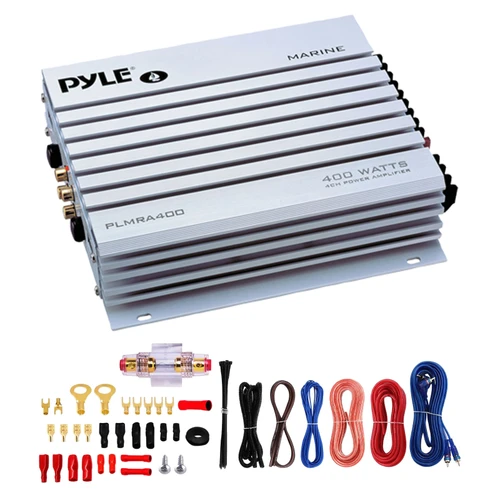

Pyle PLMRC400X4 4-Channel Class D Compact Weather-Resistant Marine & Powersport Amplifier, 8-Gauge Amplifier Wiring Installation Kit, 4 AWG High Current Quick Disconnect Power Block

---

4-Channel Weather-Resistant Audio Amplifier System - Class D Compact Designed Suit for Car, ATV, UTV, 4X4, Jeep, Motorcycle and Marine, and Any Other Weather Resistant Application
Features:

4-channel Audio Amp System

Weather Resistant Class D Compact Amplifier

IPX4 Effect

Integrated Power Wiring Harness

Perfect for Custom Installations& Applications

Ability to Connect& Stream Audio from External Devices

Speaker Wiring Connectivity

Soft Turn On /Off

Overload &Power Protection Circuitry

What’s in the Box:

4-Channel Audio Amp System

Bag of Mounting Hardware

(2) Speaker Output Wire

(2) Low-Level Input Wire

(2) Hi-Level Input Wire

Power Connector

Remote In Wire (Blue)

Technical Specs:

RMS Power Output:

100W x 4 @ 4 ohm @ 1% THD @ 14.4V

150W x 4 @ 2 ohm @ 1% THD @ 14.4V

300W x 2 @ 4 ohm @ 1% THD @ 14.4V (Bridged)

MAX Power Output:

800W (4CH Stereo) / 1200W (Bridged / 2CH)

T H D: 0.1%

S / N Ratio: >90 dB

Channel Separation: > 45 dB

Frequency Response: 10Hz-20KHz

Fuse: 35A x 2

Power: DC 12V

Amp Dimensions (L x W x H): 7.95'' x 4.33'' x 1.87'' -inches
UPC Code 842893136110

---

This durable, quick disconnect allows for convenient, safe installation and servicing of amps, active subwoofers, or removable winches in powersport and marine applications. This product is designed for use in the harshest environments, unlike standard audio equipment that is not suited for off-road applications. This important part of your installation can resist the elements to keep the system working great throughout all of your rugged outdoor adventures.

Power Block:

• 2.5” W x 2” L x 2.25” D
• Accepts 4 AWG power and ground
• Remote turn-on lead
• Machined brass block
• Has rubber boot to protect from the elements

UPC Code 086429430413

---

Get all the wires you need to hook up a new marine audio system with this Pyle Hydra amplifier installation kit. These wires have high resistance to moisture, so they’re a great fit on your boat or in outdoor settings. Included wires: 20 ft. 8-gauge red power wire, 4 ft. 8 gauge black ground wire, 20 ft. 18-gauge blue remote turn-on, 20 f. 12 gauge stereo speaker wire, 20 ft. stereo RCA cable, and 6 ft. black split loom cable conduit. Also includes an AGU type 60A gold-plated fuse, water resistant in-line fuse holder, two 8G ring terminals, two 8G spade terminals, five 14-16G spade terminals, 3 butt connectors, 20 cable ties, and one black grommet.

Amp Kit:

• Marine Grade Cables and Wires
• Perfect for Installations in Boats and Outdoor
• High Resistance to Moisture
• 20ft. 8 Gauge Red Power Wire
• 4ft. 8 Gauge Black ground Wire
• 20ft. 18 Gauge Blue Remote Turn-On
• 20ft. 12 Gauge StereoSpeaker Wire
• 20ft. Right Angle/Standard Stereo RCA Audio Cable
• 6ft. Black Split Loom Cable Conduit
• AGU Type 60A Gold Plated Fuse
• Water Resistant In-line Fuse Holder
• 2 Ring Terminals: 8G
• 2 Spade Terminals: 8G
• 5 Spade Terminals: 14-16G
• 3 Butt Connectors 20 Cable Ties
• 1 Black Grommet
• Sold as: 0
• Weight: 2.1 lbs.

UPC Code 068888882415
