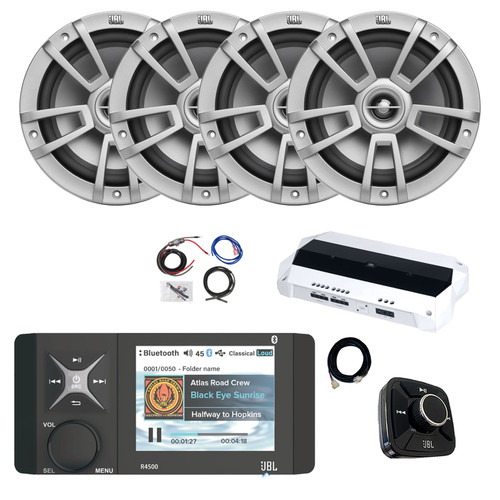

JBL Wake Series R4500 4" Color Display Marine USB Bluetooth AM/FM/WeatherBand Radio Receiver, Wired Remote, Extension, 4-Channel Amplifier w/Kit, 4x 8" 375 Watt Max 2-Way Boat Audio Speakers (Gray)

---

The JBL Wake Series Marine digital media receiver features a weather-resistant design, built-in amplifier, 4" color LCD display, built in bluetooth, rear AUX and USB ports, AM/FM/Weather Band Tuner, and NMEA2000 Ready.

Receiver:

• 4" LCD Screen
• Rotary encoder
• AM/FM/WB
• Aux input
• USB input/charging
• 4x55W Peak @4ohms
• 2 ohm stable
• Three zone line level differential outputs with L,R, Sub for each zone.
• NMEA2000 Ready.
• Adjustable dimming/illumination.
• Faceplate width 3” (76.2mm)
• Faceplate length 6 7/16” (163.6mm)
• Faceplate thickness 7/16” (11.2mm)
• Chassis width 5” (127mm)
• Chassis length 4 1/4” (108mm)
• Chassis height 1 15/16” (49.3mm)
• Wired Remote Ready (compatible with MIL-REM80 and INFREM1)

UPC Code 648701264514

---

These JBL Stage Marine Speakers are ready to take on your next outdoor adventure. These fully marinized speakers not only deliver JBL sound, but they bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.

General Features:

• IPx5 Rated
• Outdoor Performance
• Marine Design
• Balanced Dome Tweeters
• Rubber Surrounds
• Individually Voiced
• Harman Standard Reliability Testing
• Power Handling: 125Wrms, 375W peak
• Sensitivity (@ 2.83V): 90dB
• Frequency Response: 50Hz – 20kHz
• Nominal Impedance: 4 ohms

What's in the box?:

• 2 x Stage Marine 8" Speakers with attached grilles
• 1 x Stainless steel mounting hardware
• 1 x Drill bit for easy installation
• 1 x Foam gasket
• 2 x Speaker pigtail harness
• 2 x JBL sticker
• 1 x Quick Start Guide

UPC Code 050036383134

---

JBL Marine MA704 amplifier with 4-channel outputs includes selectable all high or low-pass crossovers with variable electronic frequency adjustment for precision system tuning. Engineered for harsh marine conditions with power and performance to meet the needs of any outdoor audio system. Max Power - 1000 Watts Peak

Amplifier:

• 4 Channel Marine Amplifier
• Class D Technology
• Max Power - 1000W Peak
• Power Output, 2Ω - 100W RMS x 4
• Power Output, 4Ω - 70W RMS x 4
• Power Output, 4Ω Bridged - 200W RMS x 2
• Signal-to-Noise Ratio - ≥85dB
• High and low level inputs
• Variable crossovers and bass boost

UPC Code 050036346320

---

This all weather wired remote provides the ability to control key source unit functions. Add localized control, with the most common area being the transom, quickly and easily! Arrives standard with 18" of cable so we suggest the REX20-6 extension for longer cabling needs. (REX20-6 is 20').

General Features:​

Control key source unit functions

Standard 18" cable

(Optional not included) REX20-6 extension - 20'

Compatible with the following Infinity source units

• INFPRV315.2
• REFPRV415
• KAPPRV515
• KAPMBB500

Dimensions:

• 4 1/8" L x 2 1/4" W x 1/2" (thickness once installed)
• 1 1/4" hole required for installation

UPC Code 648701578017

---

The REX20-6 extension cable gives you more placement options when you're installing select marine receivers and remotes. It features a 6-conductor plug, and if you have a long run to deal with, you can connect two of these extension harnesses for a total length of 40'.

Extension Cable

• 20-foot extension cable
• 6-conductor plug
• For use with REM-20,21,25,30,50 and 70

UPC Code 648701212003

---

The Power Sport Motorcycle Universal Amplifier Wiring Kit includes the following 6 foot length of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder, 60 amp fuse protected by a black nylon braid, Pre-terminated ring terminals, (2) 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh and 4"x6" hook and loop mounting pad for micro-amplifiers.

Amplifier Wiring Kit:

• Designed tor motorcycles
• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid
• Pre-terminated ring terminals make connections to the battery simple
• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice
• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active
• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

UPC Code 086429332267
