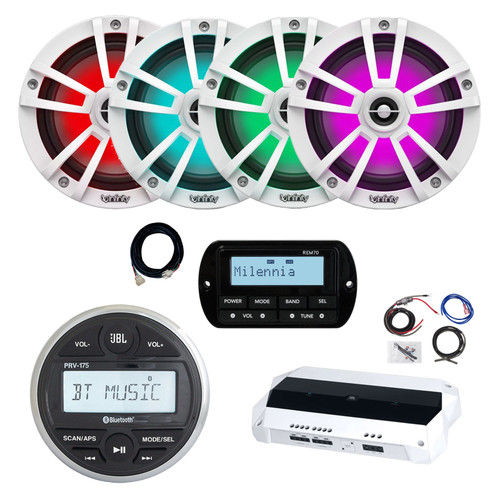

JBL Bluetooth AM/FM/WB Radio, Remote, Extension, Amp w/Kit, 4x 6.5" LED Speakers
The JAM5000N incorporates built-in Bluetooth 5.3, enabling wireless audio playback (A2DP) and control (AVRCP) from Bluetooth-enabled devices. This feature allows users to stream music, audio apps, and other content from their Bluetooth-enabled smartphones or tablets to the marine digital media receiver.
Basic playback functions, such as Play/Pause and Previous/Next Track, can be controlled directly from the front panel. Additionally, song, artist, and album information (excluding album art) is displayed on the front panel.
General Features:
- Maximum Power : 55 Watts
- RMS Power Output : 25 Watts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 4
- Color : Black
UPC Code 050036399449
Infinity Reference Marine Speakers are ready to take on your next outdoor adeventure. These fully marinized speakers not only deliver Infinty sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
6.5" LED Speakers:
- 6.5" Two-Way Marine Multi-Element speaker
- Seven color multi-color RGB LED lighting
- Power Handling 75W RMS, 225W peak
- Sensitivity: 92dB
- Frequency Response: 50Hz- 20kHz
- Impedance: 4 ohms
- IPx5 Rated
Wiring Instructions
Lighting is controlled manually through hardwire connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwire connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
UPC Code 050667372910
JBL Marine MA704 amplifier with 4-channel outputs includes selectable all high or low-pass crossovers with variable electronic frequency adjustment for precision system tuning. Engineered for harsh marine conditions with power and performance to meet the needs of any outdoor audio system. Max Power - 1000 Watts Peak
Amplifier:
- 4 Channel Marine Amplifier
- Class D Technology
- Max Power - 1000W Peak
- Power Output, 2Ω - 100W RMS x 4
- Power Output, 4Ω - 70W RMS x 4
- Power Output, 4Ω Bridged - 200W RMS x 2
- Signal-to-Noise Ratio - ≥85dB
- High and low level inputs
- Variable crossovers and bass boost
UPC Code 050036346320
This all weather wired remote provides the ability to control key source unit functions. Add localized control, with the most common area being the transom, quickly and easily! Arrives standard with 18" of cable so we suggest the REX20-6 extension for longer cabling needs. (REX20-6 is 20').
General Features:
Compatible with the following Infinity source units
- INFPRV315.2
- REFPRV415
- KAPPRV515
- KAPMBB500
Dimensions:
- 4 1/8" L x 2 1/4" W x 1/2" (thickness once installed)
- 1 1/4" hole required for installation
UPC Code 648701578017
The REX20-6 extension cable gives you more placement options when you're installing select marine receivers and remotes. It features a 6-conductor plug, and if you have a long run to deal with, you can connect two of these extension harnesses for a total length of 40'.
Extension Cable
- 20-foot extension cable
- 6-conductor plug
- For use with REM-20,21,25,30,50 and 70
UPC Code 648701212003
The Power Sport Motorcycle Universal Amplifier Wiring Kit includes the following 6 foot length of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder, 60 amp fuse protected by a black nylon braid, Pre-terminated ring terminals, (2) 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh and 4"x6" hook and loop mounting pad for micro-amplifiers.
Amplifier Wiring Kit:
- Designed tor motorcycles
- 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid
- Pre-terminated ring terminals make connections to the battery simple
- Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice
- Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active
- All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place
UPC Code 086429332267
