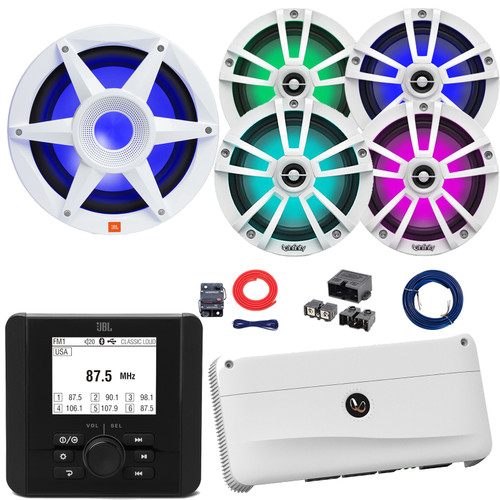

JBL JAM3000 Marine Bluetooth USB AM/FM Radio Gauge Hole Mount Receiver, 4x 6.5" 225W Max Power White Boat RGB LED Speakers, 10" 900W Max Subwoofer, 5-Channel Class AB+D Amplifier W/Kit, Speaker Wire

---

JBL JAM3000 marine gauge style audio receiver is designed for multi-element environments engineered to meet the demands in extreme environments featuring bluetooth connectivity, AM/FM radio tuner, built in amplifier, USB port for audio playback, 2.8-inch display screen and is IP66 waterproof rated.

General Features:

• 2.8” Monochrome LCD Display
• 15 Watts x 4 Channel @ 4ohm
• Supports multiple audio sources
• Bluetooth, USB, AM/FM
• Audio output - RCA & Speaker level
• IP66 Marine Rated
• RMS Power Output 15Wx4
• 3Ch/2V Pre-out
• Eco-friendly Packaging
• Mounting options: Front & Rear

What's In The Box:

• 1 x radio
• 1 x accessory harness
• 1 x mounting bracket
• 1 x foam gasket for sealing at rear mounting surface
• 2 x foam strip gasket for sealing at front mounting surface
• 4 x mounting screws
• 2 x mounting bolts for top mount
• 4 x flanged nuts
• 2 x lock washers
• 1 x owner’s manual
• 1 x safety sheet

UPC Code 050036399432

---

Infinity Reference Marine Speakers are ready to take on your next outdoor adventure. These fully marinized speakers not only deliver Infinity sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.

General Features:

• 6-1/2" (160mm) two-way marine audio multi-element speaker (white)
• Seven color multi-color RGB LED lighting,included
• Designed to withstand harsh outdoor environments
• Power Handling 75W RMS, 225W peak
• Sensitivity (@ 2.83V) 92dB
• Frequency Response 50Hz – 20kHz
• Impedance 4 ohms

UPC Code 050667371906

---

Stay Clear, Get Loud, Go Deep

JBL's Stadium Marine loudspeakers leverage JBL’s world class audio engineering and music reproduction with purpose-built marine loudspeakers that will survive the rigors of the harsh marine environment. Choose from the most popular sizes for boats and watercraft. The 6-1/2" coaxial, 8" three-way convertible speaker system and 10" woofer have Plus One™ polypropylene woofer and midrange cones, Mylar tweeter domes (Except Subwoofer), one piece cast polymer baskets, sealed magnets, and rubber woofer surrounds for high SPL performance.

Wind, water or engine noise will not drown them out. Speakers are UV resistant in a marine grade IPX3 (IPX5 from front) weather resistant and include RGB perimeter illumination and go through 300 hours of salt spray testing. And they're ready to make amazing music on the water. Whether it's a daily scrub down, a picnic in a quiet cove or an all-out race across high swells, JBL has the right configuration for your craft.

General Specifications

• Power Handling 300 watts RMS, 900 watts peak power
• Sensitivity 89dB at 2.83 volts
• Frequency Response 20 - 2KHz
• Voice Coil Diameter 2 in. (49.5mm)
• Impedance 2 and 4-ohms, Switch Selectable Impedance (SSI™)

What's in The Box?

• 1 x 10" (250mm), ea., with integrated grille
• 6 x Screw
• 6 x Speed clip
• 1 x Spanner
• 1 x Closed cell foam gasket
• 1 x LED cable
• 2 x JBL logo badge (Grey)
• 2 x JBL logo badge (Orange)
• 1 x Owner's manual
• 1 x RoHS sheet

UPC Code 050036354028

---

The Infinity Marine 7005A 5-channel amplifier delivers 50-Watts RMS to each of the front and rear speakers. The subwoofer channel features a hi-pass and low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance. Includes a wired Remote Bass Control for volume adjustment (16.5 feet long).

General Features:

• 5 Channel Marine Amplifier
• 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
• 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 100 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• Class AB+D amp technology
• Bass boost and low pass filter on subwoofer channel
• RBC wired remote - volume adjustment
• Variable high and low-pass filters on front and rear channels
• Preamp and speaker-level inputs
• Preamp outputs
• Fuse rating: 30A x 2
• 4-gauge power and ground leads recommended
• Wiring and hardware not included

UPC Code 050667380113

---

Power your marine amplifier with a wiring kit that can withstand the harsh environment and still deliver full sound performance. Fully tinned wiring ensures that these amp kits won’t corrode or oxidize and turn green after a season on the water. Oxygen-free copper provides a reliable connection with maximum conductivity. By using 100% virgin copper the tin won’t flake off, something commonly seen when using recycled copper materials. While it is also common to tin just the tips of the wire for cost savings, this practice does not actually provide any benefits. Metra’s amp kits use fully tinned copper wire from top to bottom that can withstand a harsh marine environment and salty air. The ignition-protected 50-amp circuit breaker is IP67 rated with stainless steel connection points for corrosion resistance

Amplifier Wiring Kit:

• Marine compliant amplifier wiring kit
• Fully tinned 100% virgin copper wire
• BC5W2 marine compliant jacket
• 50-amp marine circuit breaker is rated IP67 with stainless steel connection points for corrosion resistance
• Easy to solder tinned wiring
• Connectors, ring terminals, and wire ties included

What’s in the box:

• (1) 8-gauge tinned oxygen-free copper side-by-side red power and yellow ground wire (10ft.)
• (1) 18-gauge tinned oxygen-free copper blue remote turn-on wire (18ft.)
• (2) 8-gauge ring terminal with shrink tube and logo, pre-terminated on each end of the 2ft. red wire
• (1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on 8ft. red wire
• (1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on yellow wire
• (1) Ignition protected circuit breaker (50-amp)

UPC Code 086429416820

---

A ground-breaking virgin-PVC, Hyper-Flex insulation and multi-strand construction allows you to bend, twist, and contort the cable in any way imaginable for an ultimate installation experience while delivering maximum current flow; remains ultra-flexible under hot or cold temperature extremes; transfers the cleanest audio signal possible by using tightly twisted, silver-tinned OFC copper conductors; zip line to easily remove outer insulation.

Speaker Wire:

• 20 Feet
• 16 Gauge
• Silver-tinned OFC (oxygen-free copper)

UPC Code 632016086404
