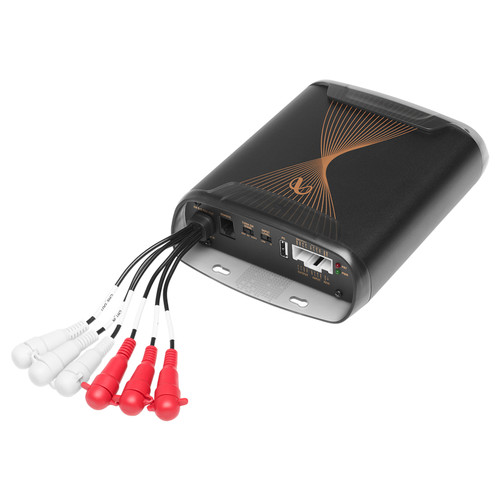

Infinity INFDSP4425 4-Channel Class A/B 200W Peak Power Digital Signal Processing Amplifier System (Factory Reconditioned)

Infinity DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 4-channel audio inputs, 4-channel powered audio outputs, 2-channel pre-amp outputs, easy to use tuning interface and detailed tuning capabilities to satisfy any enthusiast. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

General Features:

• Small footprint, All-in-One Class A/B
• Amplifier with DSP Control
• Everything You Need to Get Started
• Simple Tuning Interface with Complex
• Features
• Versatile Connectivity
• Convenient Bass Control
• Conformal Coated PCB
• Harman Standard Reliability Testing
• Infinity Industrial Design
• Max Power: 200W peak
• RMS Power Output @ 4Ω: 25W x 4, <10% THD+N
• Full-Range Pre-Amp Outputs: 2-channel
• Variable crossovers with hi-pass, lo-pass, bandpass capability & adjustable 0-to-48dB slopes
• Selectable EQ adjustment: Parametric or Graphic
• Selectable 12V/Signal Sense/DC Offset turn-on
• modes, with 12V remote output
• Frequency Response 10Hz to 22kHz @ -3dB
• Signal-to-Noise Ratio: >80dB @ 4Ω
• Subwoofer Level Control -30dB to +6dB
• (sold separately)
• Fuse Rating: 15A
• Operating Voltage: 8V to 16V

What’s in the Box:

• DSP Amplifier
• Wiring Harness
• USB Tuning Cable
• Mounting hardware
• Spare fuse
• 4x wire ties
• 2x Infinity sticker
• Quick Start Guide
