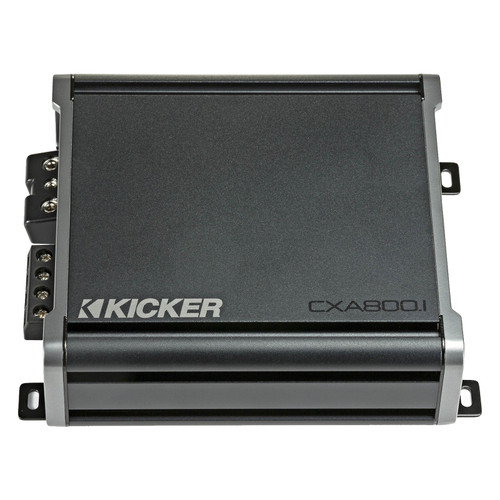

The CXA800.1 Mono Amplifier is built for affordable power and performance, thanks to optimized circuit layout and high-grade internal components.
This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.
This CX.1 amplifier delivers as much as 800 watts into one bass channel.
General Features:
- Efficient Class-D amplifier
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
- Vertical mounting hardware included for another unique look
- Power (watts/ch) 4 Ohm: 300x1
- Power (watts/ch) 2 Ohm: 600x1
- Power (watts/ch) 1 Ohm: 800x1
- CXRC Remote Bass Capable (sold sep.): yes
- Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 8-1/8, 20.6
- Frequency Response (Hz): 25-200, +0/-1dB
- Input Sensitivity: 250mV-10V (Low Level), 1V-40V (High Level)
- Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power
- Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave
- Subsonic Filter: 25Hz @24dB/octave
- KickEQ Boost: Variable 0-6dB @40Hz
