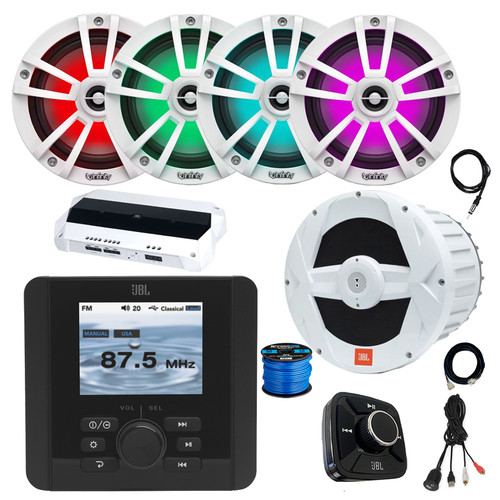

JBL Marine Radio, Remote, Amp,Kit, Accessories, 10" Sub, 4x 6.5" LED Speakers
JBL PRV175 Bluetooth USB Marine Gauge Style Stereo Receiver is made with a IPX5 marine rated faceplate to protect against any weather condition featuring built in Bluetooth for audio streaming, USB input and AUX inputs, AM/FM tuner and RCA or speaker level power outputs.
General Features
- Marine Gauge Style Digital Media Receiver
- AM/FM tuner
- Bluetooth Audio Streaming
- Built-In Amplifier (45 peak x 4 channels)
- Waterproof Faceplate
- USB input and control-for USB drives only
- Auxiliary input
- 2 pair of RCA output
- Wired remote option
UPC Code 648701217503
Infinity Reference Marine Speakers are ready to take on your next outdoor adeventure. These fully marinized speakers not only deliver Infinty sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
6.5" LED Speakers:
- 6.5" Two-Way Marine Multi-Element speaker
- Seven color multi-color RGB LED lighting
- Power Handling 75W RMS, 225W peak
- Sensitivity: 92dB
- Frequency Response: 50Hz- 20kHz
- Impedance: 4 ohms
- IPx5 Rated
Wiring Instructions
Lighting is controlled manually through hardwire connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwire connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
UPC Code 050667372910
This Infinity Reference Marine Subwoofer is ready to take on your next outdoor adeventure. These fully marinized subwoofers not only deliver Infinty sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
General Features:
- IPx5 Marine Rating
- Cosmetic Appeal
- Outdoor Performance
- Multi-Color RGB Lighting
- Marine Design
- Bridge Mounted (Grille Mounted) Tweeters
- Balanced Dome Tweeters
- Weather-Resistant
- One-Piece Polymer Basket
- Rubber Surrounds
- Harman Standard Reliability Testing
- Individually Voiced
- Power Handling: 250W RMS, 750W peak
- Sensitivity (@ 2.83V): 89dB
- Frequency Response: 25Hz – 500Hz
- Impedance: 4 ohms
UPC Code 050667371944
The JBL Marine A5055 5-channel amplifier delivers 760 Watts RMS using a Class AB+D amplifier design to ensure high output. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance. Includes a wired Remote Bass Control for volume adjustment (16.5 feet long).
General Features:
- 5 channel Marine amplifier
- 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 100 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
- Low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel
- Bass boost on subwoofer channel (0-12dB at 45Hz)
- Phase switch on subwoofer channel (0, 180 degrees)
- Preamp and speaker-level inputs
- Fuse rating: 30A x 3
- 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- WxHxD=360mm x 51.3mm x 180mm
- WxHxD=14-3/16” x 2-1/16” x7-1/8”
UPC Code 050036396950
This Milennia REM70 wired remote works with select marine receivers. This remote features a backlit silicone rubber membranes, 2-line display matches radio, adjust bass, treble, fader and balance by using button. 4"W x 2-1/4"H x 3/4"D
General Features:
- Weatherproof
- Backlit silicone rubber membranes
- 2-line display matches radio
- Can adjust bass, treble, fader and balance by using the select button
- Sealed tack switches
- Cord for the harness is 18" so an optional extension cable (REX20-6) is recommended
- Display remote for PRV-250, PRV-350, PRV-175, MBB-2020, MBB-2120, MR-180
UPC Code 648701577010
The REX20-6 extension cable gives you more placement options when you're installing select marine receivers and remotes. It features a 6-conductor plug, and if you have a long run to deal with, you can connect two of these extension harnesses for a total length of 40'.
Extension Cable
- 20-foot extension cable
- 6-conductor plug
- For use with REM-20,21,25,30,50 and 70
UPC Code 648701212003
In a “one size fits all” world it is rare to see a company provide a wide range of options. The team at T-Spec understands how difficult it can be to find just the right product for your application. That is why the new T-Spec amp kit line features 28 different models to cover nearly every price, power and performance level imaginable! T-Spec amp kits utilize the finest materials to ensure maximum performance and hassle-free installation.
- 17FT V8 8 AWG OFC matte solid silver multi-strand power wire
- 3FT V8 8 AWG OFC matte solid black multi-strand ground wire
- 17FT 18 AWG OFC blue remote turn-on wire
- 17FT V8 noise rejecting twisted rca cable with precision molded ends and split tip
- Proprietary V8 MINI ANL fuse holder with 40A fuse
- Nickel Plated 8 AWG seamed crimp ring terminal with 8.5mm hole and silver boot connected at battery end
- Nickel Plated 8 AWG seamed crimp ring terminal with 8.5mm hole and black boot connected at ground
- 8 AWG spade terminals with silver and black boots for amp connection
- Miscellaneous connectors terminals and wire ties
UPC Code 086429280995
This rugged Enrock EKMR1 marine soft wire universal antenna gives you performance, durability and plenty of placement options. The flexible wire makes it the perfect hideaway antenna, while the corrosion-resistant rubber exterior confirms that it will stand up to salt and spray. The 22inch long flexible wire will make mounting it a breeze.
General Features:
- 22" AM/FM Marine Antenna
- Improves Radio reception
UPC Code 799861388630
The Universal USB/3.5mm Auxiliary Interface Mount and Cable measures 10 feet in length and will convert your AUX inputs to USB.
AUX/USB Adaptor:
- USB to RCA pass-through extension cable
- Cable Length: 3m (10ft)
UPC Code 799861390145
A ground-breaking virgin-PVC, Hyper-Flex insulation and multi-strand construction allows you to bend, twist, and contort the cable in any way imaginable for an ultimate installation experience while delivering maximum current flow; remains ultra-flexible under hot or cold temperature extremes; transfers the cleanest audio signal possible by using tightly twisted, silver-tinned OFC copper conductors; zip line to easily remove outer insulation.
Speaker Wire:
- 20 Feet
- 16 Gauge
- Silver-tinned OFC (oxygen-free copper)
UPC Code 632016086404
