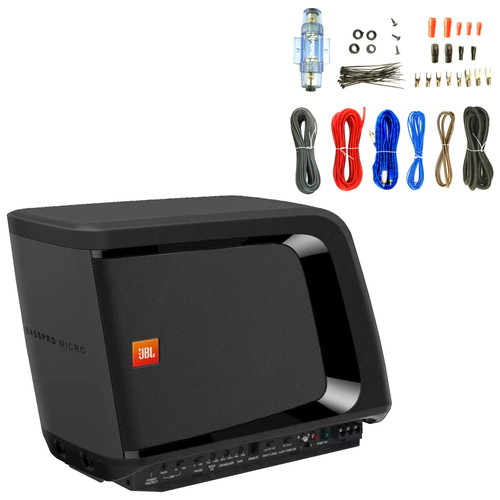

JBL BassPro Micro Class D 140 Watts RMS Powered Subwoofer, Amplifier Wiring Kit
This JBL ultra-compact powered subwoofer system achieves jaw-dropping bass performance that is hard to believe for its size. The 140-watt RMS Class D amplifier and proprietary subwoofer combination delivers 100 dB at 10 feet! The subwoofer enclosure is docked to the permanent amplifier base but detaches in just seconds providing extra cargo space when needed. The BassPro Micro includes speaker-level and line-level inputs that easily connect to the car's existing audio system. There are also controls for input sensitivity, crossover frequency, phase and a bass EQ with 9 dB of boost. The BassPro Micro's efficient and streamlined design makes it an ideal upgrade for any car’s audio system. If you are hungry for even more bass, you can daisy chain two units together to deliver real thunder.
General Features:
- Driver Complement: 8"(200mm) Woofer
- Amplifier Power: 140W RMS
- Frequency Response: 35Hz – 120Hz
- Fuse: 15A
- Maximum Current Draw: 14.5A
- Quiescent Current Draw: <800mA
- Input Sensitivity: 0.05V – 2.0V Low-Level
- Input; 0.5V – 20V High-Level Input
- Crossover Frequency: 50Hz – 120Hz
- Crossover Slope: 12dB/octave
- Bass Boost: 0dB to + 9dB @ 65Hz
- Dimensions (L x W x H): 16-3/16"x7"x10-7/8"
- Input sensitivity, Crossover Frequency, Bass EQ and Phase adjustments
- Daisy Chain Connection
- Audio Detect and Remote In
- High- and Low-level Inputs
- Class D amplifier
- Sleek Appearance and Smart Design
In the Box:
- BassPro Micro Subwoofer enclosure
- BassPro Micro Amplifier base
- Hardware for attachment to vehicle
- QSG
- 2 RCA adapters
UPC Code 050036335652
The Enrock 8-Gauge Amplifier Installation Kit makes installing your brand new sound system in your car or truck much easier. It includes all of the cables, wires, tubing, ties, grommets and ring terminals that you will need in order to get your new sound system up and running.
The car amp install kit works with a wide range of sound systems and car types and it makes the installation process much simpler by conveniently adding all your supplies to one single kit.
Kit Includes:
- 20 ft. 8 GA Red Power Cable.
- Competition High Quality Fuse Holder.
- 1/4" Ring Terminal.
- 3 ft. 8 GA Black Ground Cable #10 Ring Terminal.
- 16 ft. 18 GA Blue Turn-On Wire.
- 20 ft. High Performance RCA (TRCA) Interconnect (3) Rubber Grommets.
- 30 ft. Speaker Wire 5/16" Ring Terminal.
- 6 ft. Split Loom Tubing (20) 4" Wire Ties.
UPC Code 728120451105
