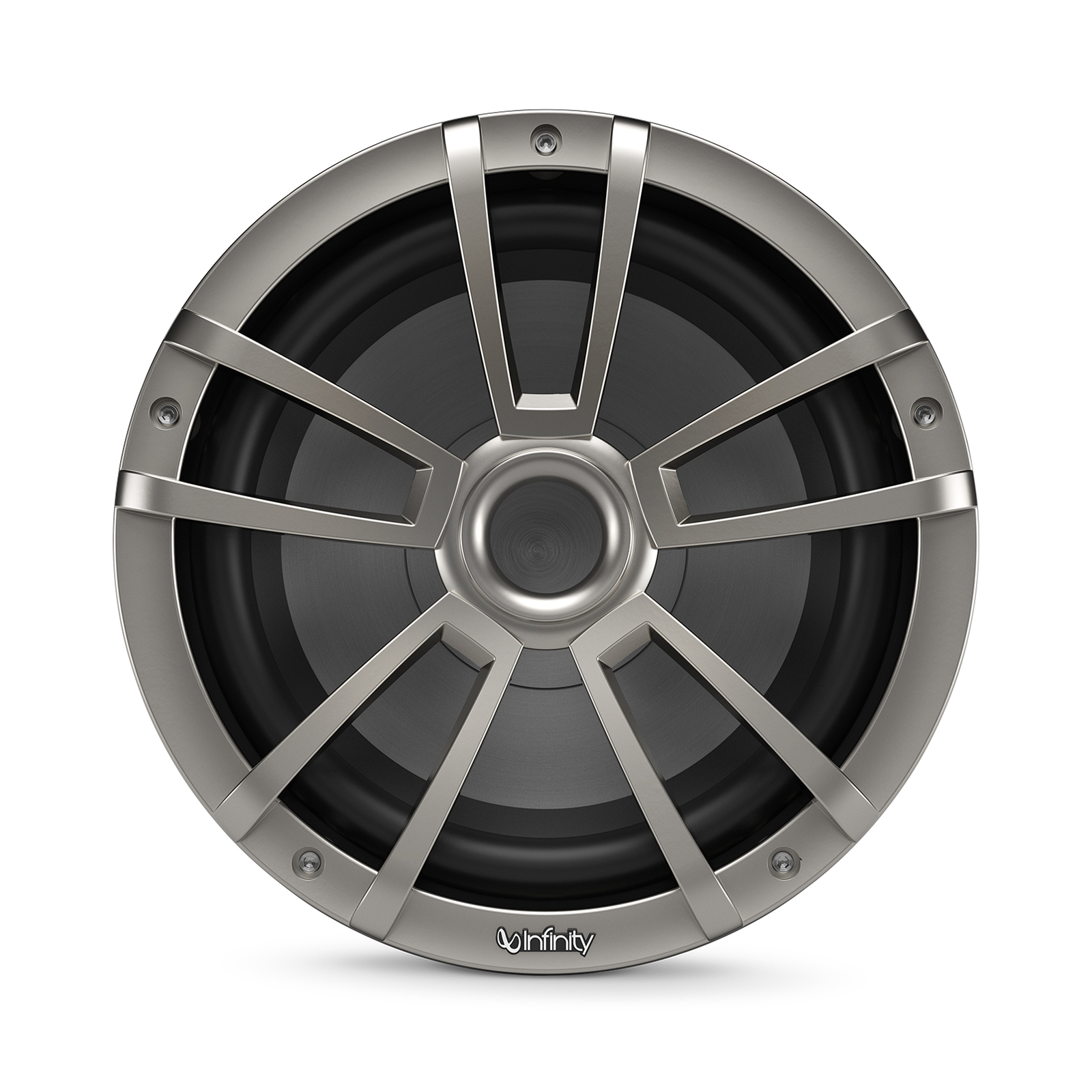

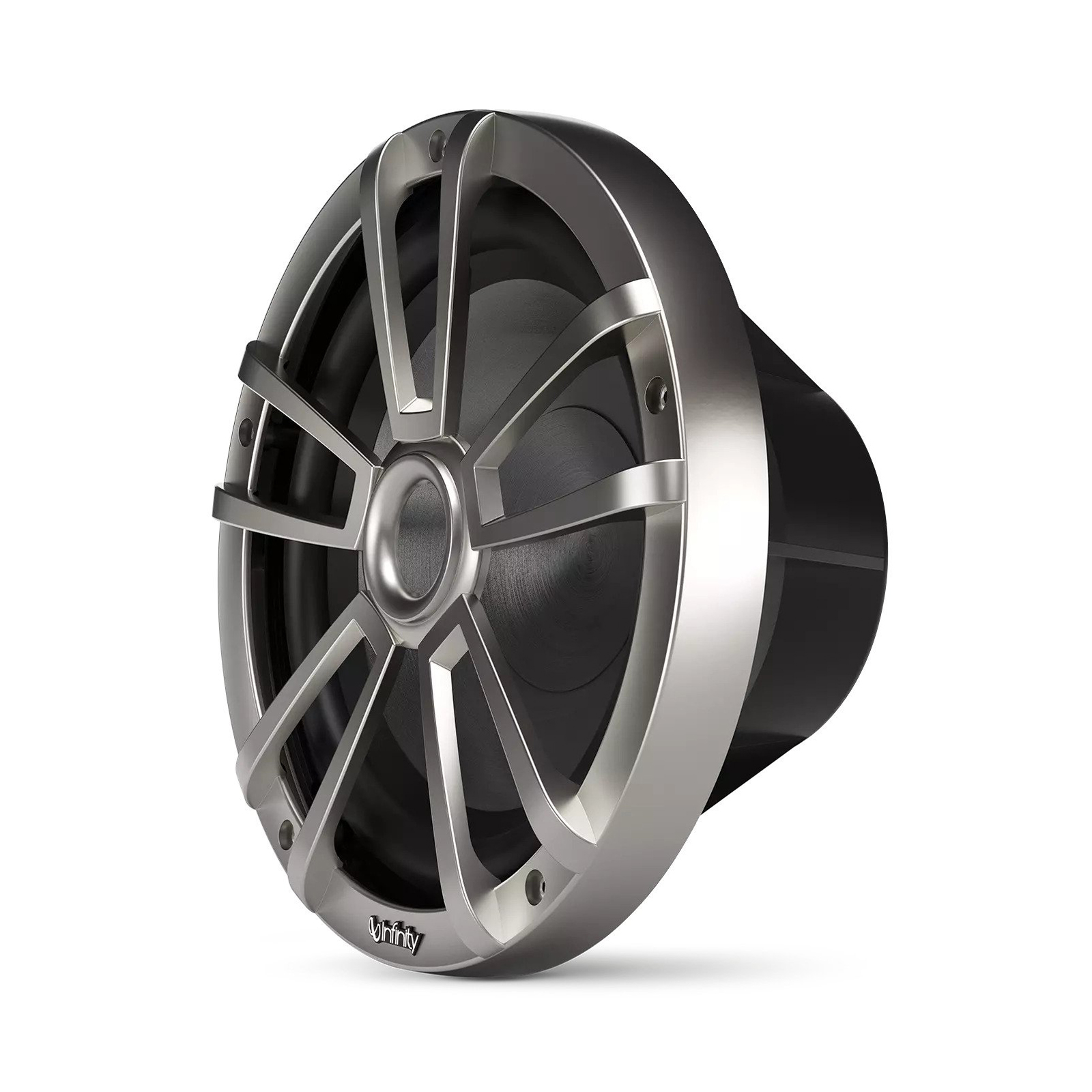

This Infinity Reference Marine Subwoofer is ready to take on your next outdoor adeventure. These fully marinized subwoofers not only deliver Infinity sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
General Features:
- IPx5 Marine Rating
- Cosmetic Appeal
- Outdoor Performance
- Multi-Color RGB Lighting
- Marine Design
- Bridge Mounted (Grille Mounted) Tweeters
- Balanced Dome Tweeters
- Weather-Resistant
- One-Piece Polymer Basket
- Rubber Surrounds
- Harman Standard Reliability Testing
- Individually Voiced
- Power Handling: 250W RMS, 750W peak
- Sensitivity (@ 2.83V): 89dB
- Frequency Response: 25Hz – 500Hz
- Impedance: 4 ohms
- Bulk Packaging
LED Wiring Instructions:

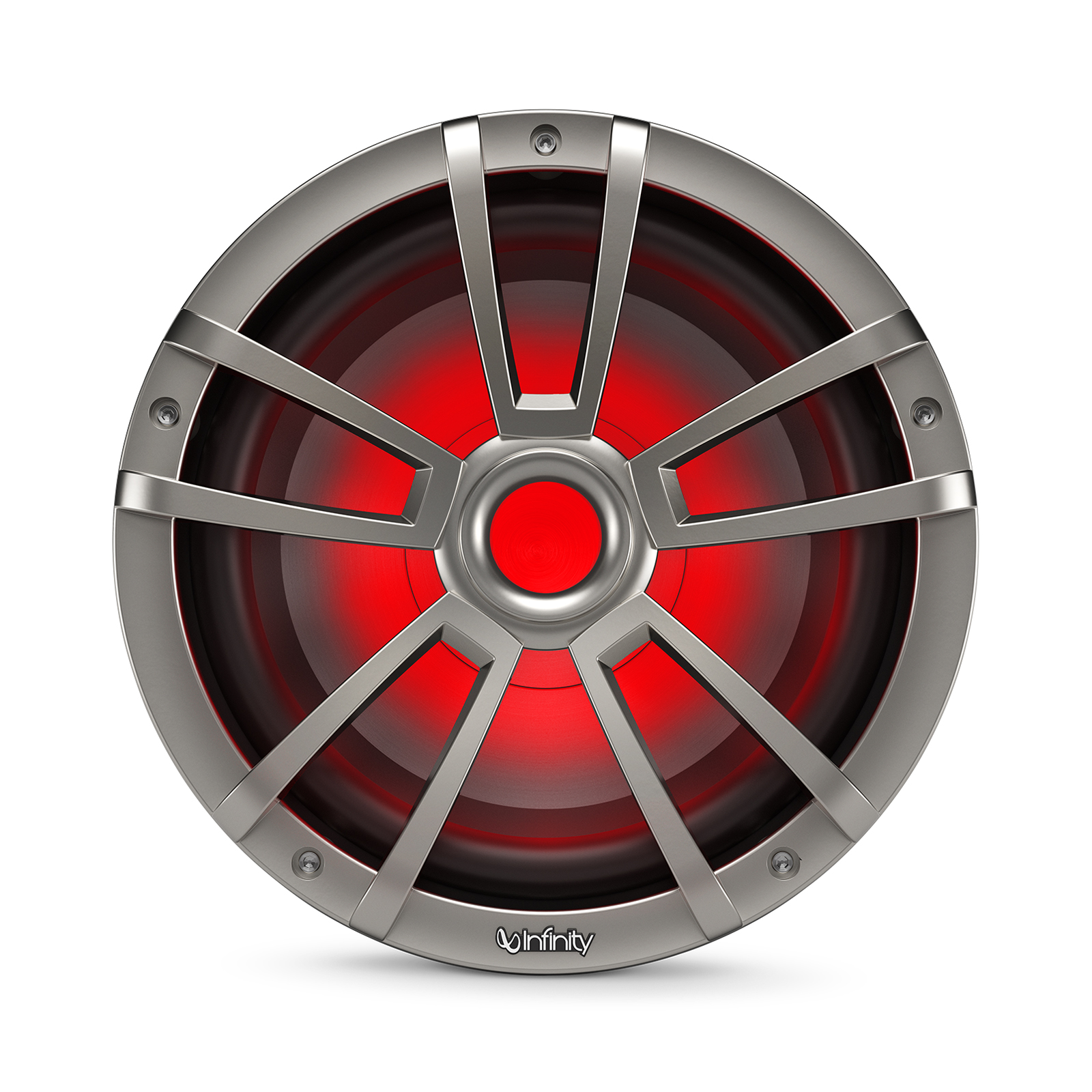

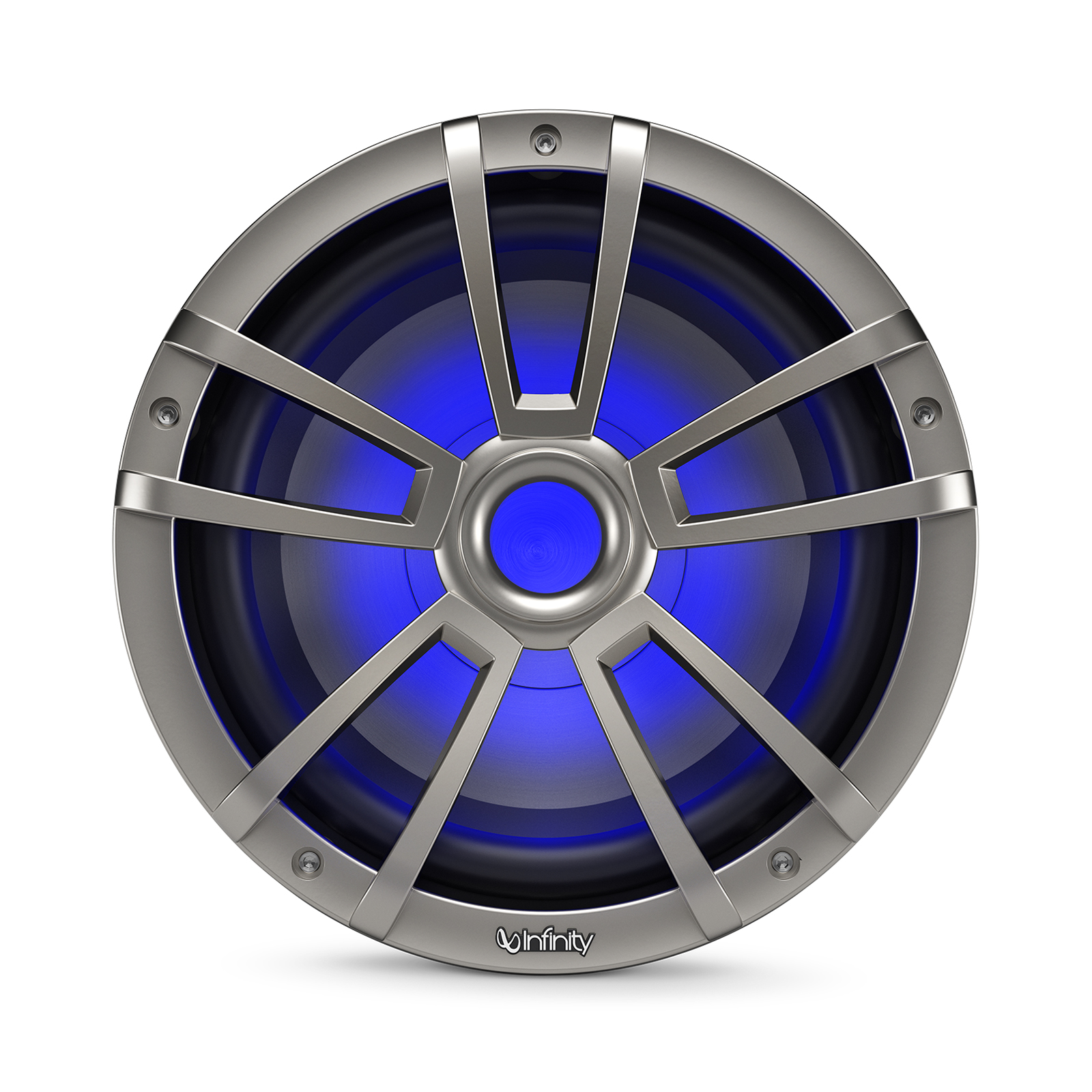

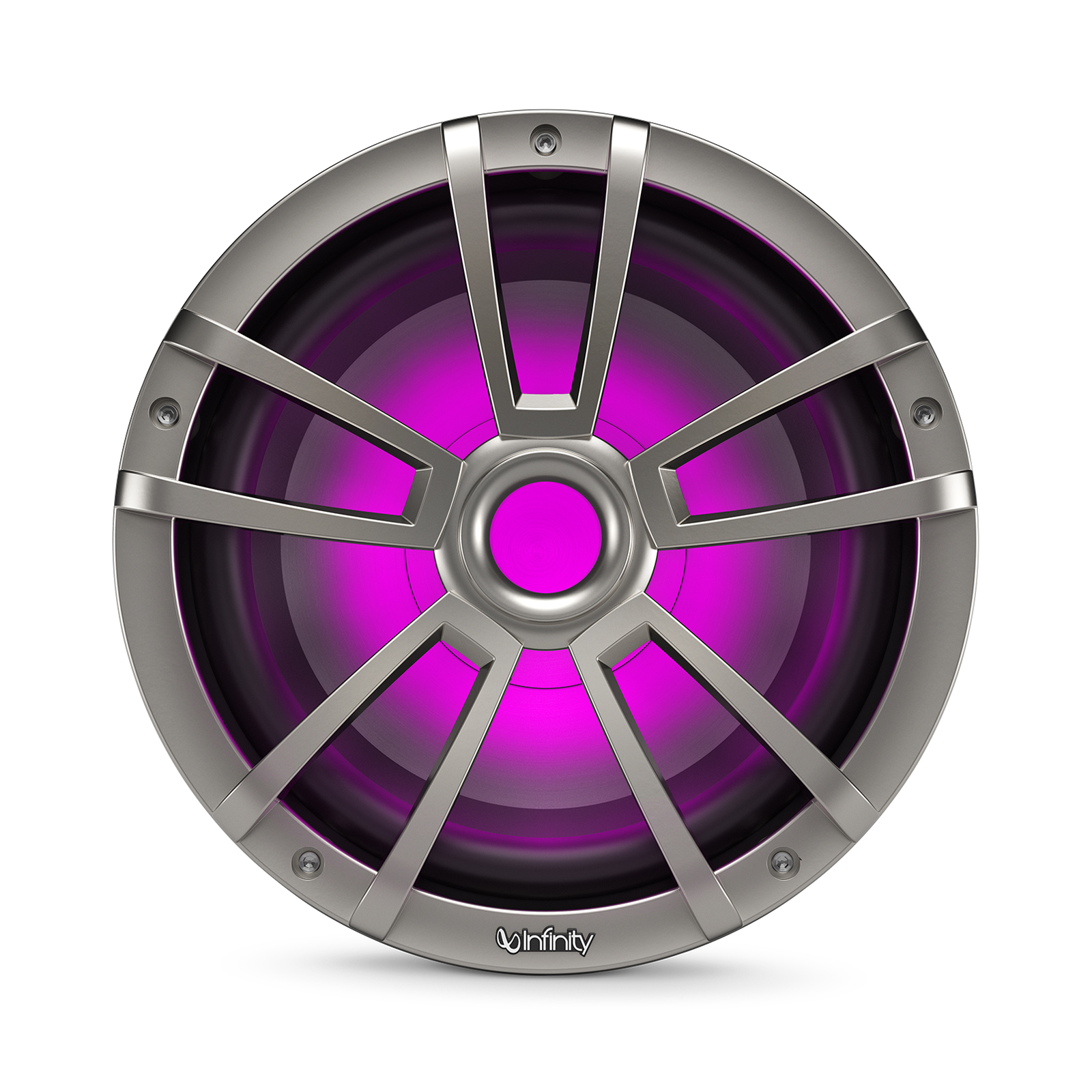

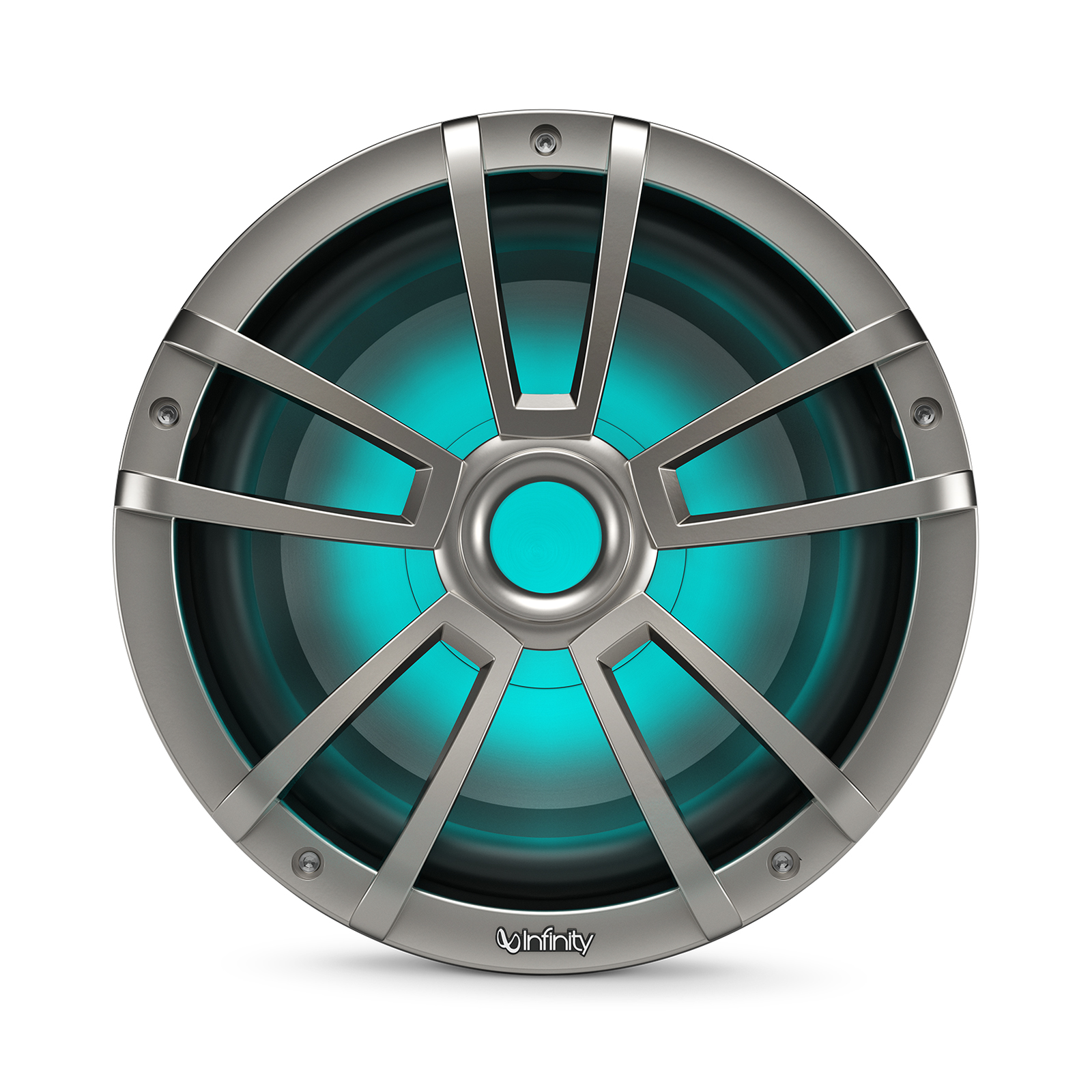

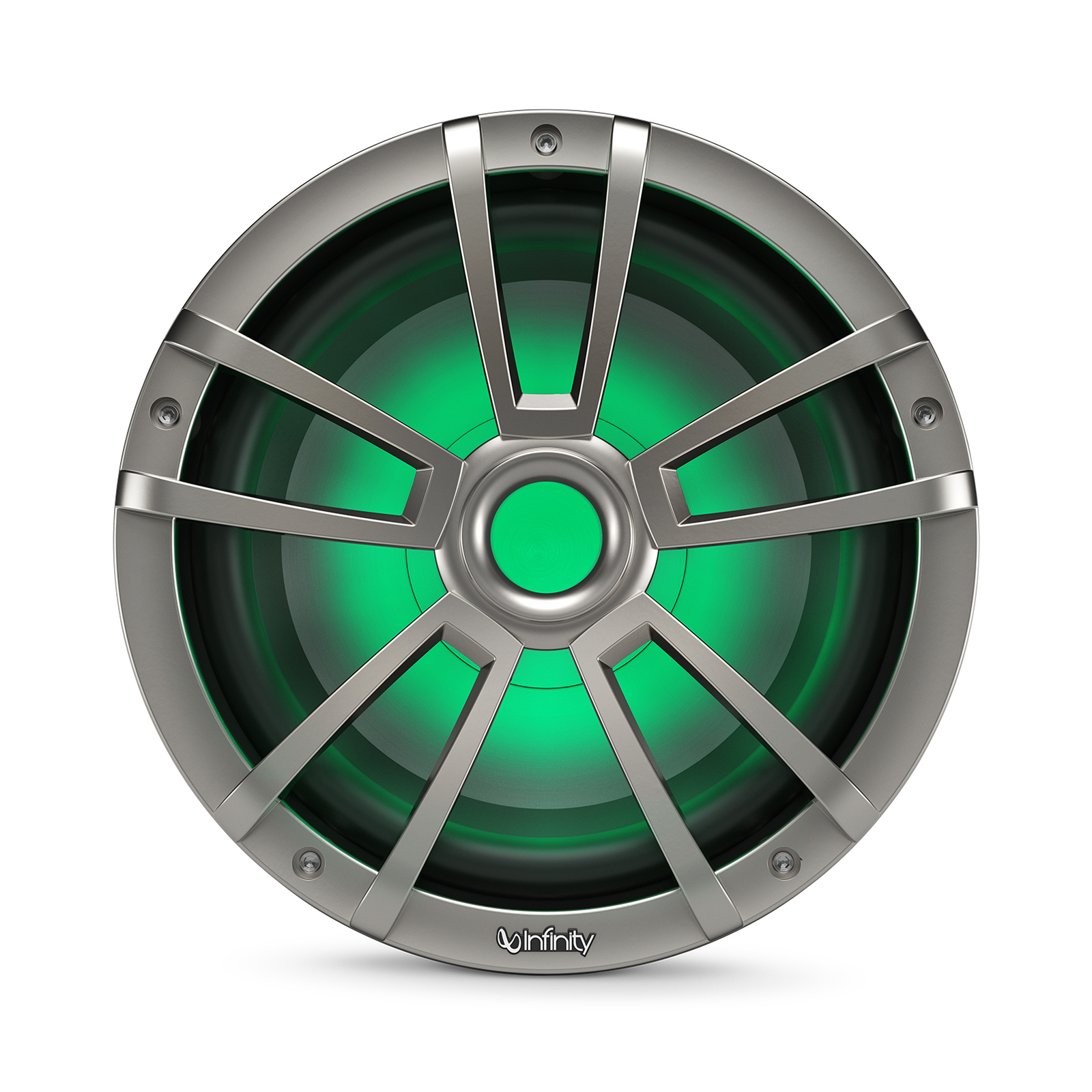

Lighting is controlled manually through hardwired connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwired connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
