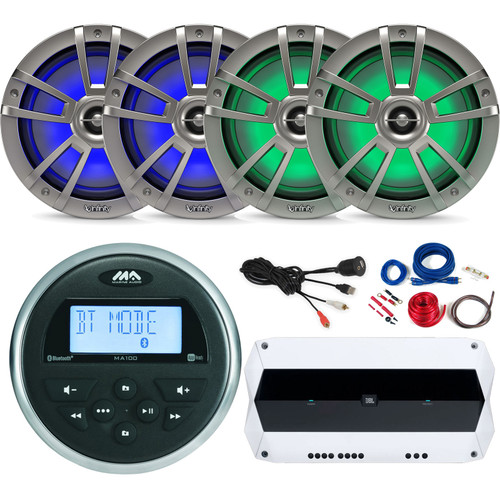

Marine Audio MA100 Stereo, 4x 8" Titanium LED Speakers, Amp w/Kit, USB Interface
The Marine Audio MA100 is a great AM/FM/USB compact 3.5" round waterproof stereo with Bluetooth and app control technology. This stereo features 160 watts, a USB input along with an auxiliary input and a line out (RCA). The MA100 has a large, daylight readable LCD display with blue backlit controls to offer boaters a user-friendly interface. This economical stereo fits a 3" gauge hole and has UV resistant finishes and corrosion resistant materials to guarantee it withstands life in a rough aquatic environment.
General Features:
- 160 watts (40W x 4)
- Bluetooth streaming audio (A2DP/AVRCP)
- Waterproof (IPX6)
- AM/FM tuner
- Rear USB input for MP3 enabled devices
- Rear AUX input (RCA)
- Line-out audio (RCA)
- Daylight-readable segmented LCD display
- Blue LED Backlighting
- LED backlit buttons
- Electronic audio settings (Bass/Treble/Balance/Fader)
- Compact, self-contained design
- Simple user interface
- Conformal coated circuit boards
- UV resistant finishes/materials (ASTM D4329)
- Corrosion resistant materials (ASTM B117)
- FCC/CE certified
- App control: compatible with both Apple & Android
- 12V DC Power Supply
- 12 Presets (6AM, 6FM)
- 4-Channel Amplified Audio Output
- APP Ready
- Conformal Coated PCB
UPC Code
Infinity Reference Marine Speakers are ready to take on your next outdoor adeventure. These fully marinized speakers not only deliver Infinty sound, but they also feature RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structure, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropyelene cone and balanced dome tweeter provide great bass, smooth highs and lots of output to ensure every note can be heard loud and clear.
Specs
- 8" (200mm) two-way marine audio multi-element speaker(titanium)
- Seven color multi-color RGB LED lighting, included
- 450W Max
- Designed to withstand harsh outdoor environments
- Power Handling 150W RMS, 450W peak
- Sensitivity (@ 2.83V) 92dB
- Frequency Response 30Hz – 20kHz
- Impedance 4 ohms
General Features
- Six Models to Suit All Applications and Environments
Reference 822MLT—8" (200mm) two-way marine audio multi-element speaker – titanium
- IPx5 Rated
Marine-grade materials & components to suit the demands of a harsh outdoor environment with an IPx5 marine rating
- Cosmetic Appeal
Product family look and feel to meet the needs of our Infinity customers
- Outdoor Performance
Accentuated performance at frequencies heard in an open-air environment
- Product Value
Great performance at an affordable price point
- RGB Lighting
Multi-color RBG LED lighting engineered to withstand the harshest environment and keep the party going all night long
- Marine Design
Bridge mounted (grille mounted) tweeters to avoid water intrusion past the woofer cone
- Balanced Dome Tweeters
Weather resistant tweeters deliver a smooth high-frequency response and increased power handling for highs and mids, which equates to more lifelike sound from vocals, cymbals, brass instruments and pianos.
- Designed for the Elements
Their one-piece polymer basket is designed to stand the test of time, even after long exposure to the sun and salt. Rubber surrounds offer superior edge protection and are much more reliable than foam. And a grille-mounted tweeter allows the front of the woofer cone to be sealed, protecting the motor structure from sea spray. - Harman Standard Reliability Testing
Infinity speakers have to undergo a testing process that would destroy lesser speakers. Infinity freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time. In the case of our marine speakers, we add salt, spray and UV to ensure that they provide years of enjoyment without missing a beat.
Individually Voiced
- For most brands, off-the-shelf speakers and a cursory approval of frequency response curves are good enough. That’s not the case with Infinity. We don’t only listen to our speakers against the competition — we voice them against each other to ensure each line has the consistent Infinity sound signature that’s known and sought out by those who care about their audio. This is just part of an extensive development process undertaken by some of the best transducer engineers in the world to provide the finest listening experience at any price point.
UPC Code 050667372941
This new weather-resistant & high-performance JBL Marine MA704 amplifier delivers impressive power from a compact chassis designed to withstand outdoor environments. With 4-channel outputs, this JBL Marine amplifier incorporates our latest amplifier topology that includes selectable all-, high-, or low-pass crossovers with variable electronic frequency adjustment for precision system tuning. Engineered for harsh marine conditions, with power and performance to meet the needs of any outdoor audio system, this amplifier is the perfect match for all of your JBL marine products.
General Features
- Compact size
- High- and low-level inputs
- Selectable Output and Variable
- Adjustment Crossovers
- Product Value
- Cosmetic Appeal
- Conformal-Coated PCB
- Variable Crossovers
- Big Dynamic Power
- Max Power: 1000W Peak
- RMS Power Output @ 2Ω: 100W x 4, <1% THD+N
- RMS Power Output @ 4Ω: 70W x 1, <1% THD+N
- RMS Power Output @ 4Ω Bridged: 200W x 2, <1% THD+N
- Signal-to-Noise Ratio: >85dB (ref 1W output @ 4Ω)
UPC Code 050036346320
The Universal USB/3.5mm Auxiliary Interface Mount and Cable measures 10 feet in length and will convert your AUX inputs to USB, and is UV resistant.
General Features:
- UV-resistant
- USB to RCA 10" pass-through extension cable
- 1.5" through-hole mount
- Dustproof water-resistant rubber cover
- Use with any radio with rear USB/RCA inputs
- Cable Length: 3m (10ft)
UPC Code 799861390145
Renegade REN10KIT 10mm^2 Car Audio Complete Amplifier Installation Wiring Kit
General Features:
- 1 x 10 mm^2 Power Wire (red), flexible Strands (0,15 mm), 5 m
- 1 x 10 mm^2 Ground Wire (grey), flexible Strands (0,15 mm), 0.8 m
- 1 x RCA Stereo Audio Cable (blue), double shielded, 5 m
- 1 x 0.5 mm^2 Remote Wire, 5 m
- 1 x AGU Fuse Holder with 40 A ANL Fuse
- Installation Kit
Installation Instructions:
- Disconnect at first the negative ground connection from the vehicle’s battery.
- Connect the GROUND CABLE (brown, 0.8m) with the ground terminal of the amplifier and a suitable GROUND contact point on the car chassis, with a maximum distance of 1 meter from the amplifier. Use the ringterminal for the GROUND contact point. Ensure that all paint or other insulation is removed from around the hole area.
- Find a suitable position for the FUSE HOLDER next to the car battery’s PLUS POLE. The maximum distance should not be more than 30 cm. Please ensure, that you don’t damage any parts of the car, like the fuel tank, wires etc.
- Cut off a part of the POWER CABLE (red, 5m) on one end, which has the same length like the distance from the battery’s PLUS POLE to the FUSE HOLDER (max. 30cm). Connect this part on the end without ringterminal with the FUSE HOLDER (without inserted fuse) and the other end to the battery’s PLUS POLE. Use for the connection the supplied ring terminals.
- Lead one end of the POWER CABLE (red) from the car battery area through the car to the +12V terminal of the amplifier and connect it. Then connect the other end of the cable with the FUSE HOLDER at the suitable terminal.
- Lead the RCA/CINCH CABLE pair with attached REMOTE WIRE from the HEAD UNIT through the car to the amplifier’s position. Then connect the RCA/CINCH plugs on one end with amplifier, and the other end with the HEAD UNIT RCA/CINCH outputs. Please observe the correct polarity of all connections.
- Connect the one end of the attached REMOTE WIRE with the REMOTE/REM terminal of the HEAD UNIT and the other end with the REMOTE/REM terminal of the amplifier. This wire provides a turn on/turn off signal to the amplifier, when the HEAD UNIT is turned on / turned off. NOTE: some amplifier types may require, that you have to extend the REMOTE WIRE with a suitable cable, to lead the REMOTE WIRE to the other endpanel of the amplifier.
- At least insert the FUSE into the FUSE HOLDER. Ensure not to cause a short circuit, or your car’s electric system may get damaged. Do not touch the bare metal parts of the cable or the car battery, otherwise a risk of electric shock consists. Then re-connect the negative ground connection to the vehicle’s battery.
UPC Code 854932002478
